PID implementation of UMP mini automation plant part 1- heating tank

Lee, Ming Jie (2010) PID implementation of UMP mini automation plant part 1- heating tank. Faculty Of Electrical & Electronic Engineering, Universiti Malaysia Pahang.

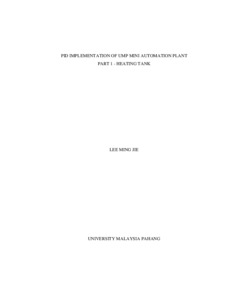

[img]
Preview
Pdf
PID implementation of UMP mini automation plant part 1- heating tank.pdf

Download (3MB) | Preview

Abstract

A temperature control unit is a special I/O units that receive inputs directly from thermocouple, perform PID control with 2 degree of freedom and output results through open collector outputs. Temperature control is very difficult to be implemented by using ordinary control techniques, hence the purpose of this research is to describe the implementation of PID controller design based on programmable logic controller (PLC) in order to control the time to heat up a particular solution to a desired temperature. The PLC OMRON CJIM-CPU12 and the temperature control unit CJ1W-TC001 is 2 vital parts in this research. UMP mini automation plant involved in this project is initially malfunction, so reverting it back to its original functional state is set to main priority and followed by detail PID analysis of heating tank (tank 2) of UMP mini automation plant

Item Type: Undergraduates Project Papers
Additional Information: Project paper (Bachelor of Electrical Engineering (Power System)) -- Universiti Malaysia Pahang - 2010, SV: REZA EZUAN BIN SAMIN, NO. CD: 5354
Uncontrolled Keywords: PID controllers, Temperature measurements -- Automatic control
Subjects: T Technology > TJ Mechanical engineering and machinery
Faculty/Division: Faculty of Electrical & Electronic Engineering
