Fabrication of display unit for electrical and electronic wire harness of single cylinder four stroke engine for teaching purpose

Mohd Hassnun Saiffuddin, Mohd Mustafa (2012) Fabrication of display unit for electrical and electronic wire harness of single cylinder four stroke engine for teaching purpose. Faculty of Mechanical Engineering, Universiti Malaysia Pahang.

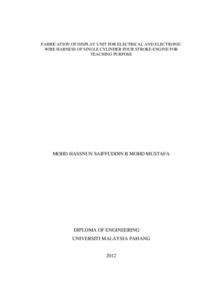

[img]
Preview
Pdf
Fabrication of display unit for electrical and electronic wire harness of single cylinder.pdf - Accepted Version

Download (1MB) | Preview

Abstract

This project is about to design the display unit for the electric and electronic wire harness of the motorcycle for the teaching. Its purpose is to ease the user to study about the wire harness in the motorcycle without need to tear down the whole bike. This project component is base on single cylinder four stroke engine of Yamaha FZ 150i which is using the injection technology. This project is design base on the sketching from the computer software and manual sketching to place the electronic component of the motorcycle which will ease the user to understand the arrangement of the wire harness in the motorcycle. Understanding the problem of user to identify each component, it has been label and each of them had been described as simple as possible. Each material of the project is using the tough and rigid to built the chassis and resist to any force. It also can be modified for the further development in the future. As the result it has down the cost and satisfied the user about the project purpose.

Item Type: Undergraduates Project Papers
Additional Information: Project paper (Diploma of Mechanical Engineering ) -- Universiti Malaysia Pahang - 2012, SV: MOHD FADZIL BIN ABDUL RAHIM, NO. CD: 6136
Uncontrolled Keywords: Electric motorcycles; Design and construction
Subjects: T Technology > TL Motor vehicles. Aeronautics. Astronautics
Faculty/Division: Faculty of Mechanical Engineering
