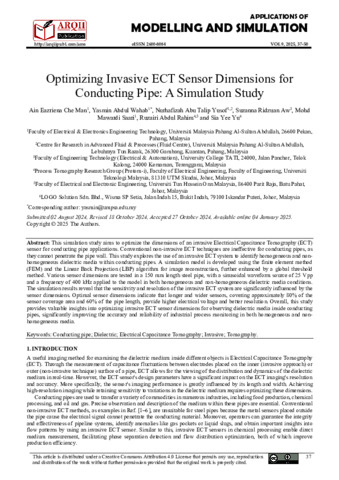

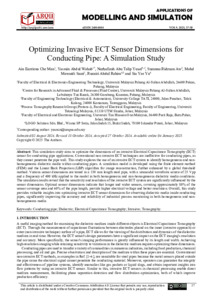

Optimizing Invasive ECT sensor dimensions for conducting pipe: A simulation study

Ain Eazriena, Che Man and Yasmin, Abdul Wahab and Nurhafizah, Abu Talip Yusof and Suzanna, Ridzuan Aw and Mohd Mawardi, Saari and Ruzairi, Abdul Rahim and Yu, Sia Yee (2025) Optimizing Invasive ECT sensor dimensions for conducting pipe: A simulation study. Applications of Modelling and Simulation, 9. pp. 37-50. ISSN 2600-8084. (Published)

Pdf Optimizing Invasive ECT sensor dimensions for conducting pipe.pdf Available under License Creative Commons Attribution. Download (4MB)

Abstract

This simulation study aims to optimize the dimensions of an invasive Electrical Capacitance Tomography (ECT) sensor for conducting pipe applications. Conventional non-invasive ECT techniques are ineffective for conducting pipes, as they cannot penetrate the pipe wall. This study explores the use of an invasive ECT system to identify homogeneous and non-homogeneous dielectric media within conducting pipes. A simulation model is developed using the finite element method (FEM) and the Linear Back Projection (LBP) algorithm for image reconstruction, further enhanced by a global threshold method. Various sensor dimensions are tested in a 150 mm length steel pipe, with a sinusoidal waveform source of 25 Vpp and a frequency of 400 kHz applied to the model in both homogeneous and non-homogeneous dielectric media conditions. The simulation results reveal that the sensitivity and resolution of the invasive ECT system are significantly influenced by the sensor dimensions. Optimal sensor dimensions indicate that longer and wider sensors, covering approximately 80% of thesensor coverage area and 60% of the pipe length, provide higher electrical voltage and better resolution. Overall, this study provides valuable insights into optimizing invasive ECT sensor dimensions for observing dielectric media inside conducting pipes, significantly improving the accuracy and reliability of industrial process monitoring in both homogeneous and non-homogeneous media.

Item Type:	Article
Additional Information:	Indexed by Scopus
Uncontrolled Keywords:	Conducting pipe; Dielectric; Electrical Capacitance Tomography; Invasive; Tomography
Subjects:	T Technology > TK Electrical engineering. Electronics Nuclear engineering
Faculty/Division:	Institute of Postgraduate Studies Faculty of Electrical and Electronic Engineering Technology Centre for Research in Advanced Fluid & Processes (Fluid Centre)
